Data Sources API

Sprint 32024-12-XX
Quick Navigation

Overview​

The Data Sources API manages data source connections, schema discovery, connection health monitoring, and credential management. This API enables unified access to 30+ data source types including SQL databases, NoSQL databases, cloud data warehouses, file storage systems, and APIs.

This module provides:

  • Data source creation and management
  • Connection testing and validation
  • Schema discovery and exploration
  • Connection health monitoring
  • Credential management
  • Support for multiple data source types (SQL, NoSQL, Cloud, Files, Streaming, API)
  • SSH tunnel support
  • Connection pooling and timeout configuration

Account Type & Use Case​

Overview​

This module provides:

  • Data source creation and management
  • Connection testing and validation
  • Schema discovery and exploration
  • Connection health monitoring
  • Credential management
  • Support for multiple data source types (SQL, NoSQL, Cloud, Files, Streaming, API)
  • SSH tunnel support
  • Connection pooling and timeout configuration

Data Sources Flow​

The Data Sources API manages the complete lifecycle of data source connections, from initial creation through ongoing health monitoring. The flow ensures secure credential management, validates connectivity, discovers schema structures, and continuously monitors connection health to maintain reliable data access.

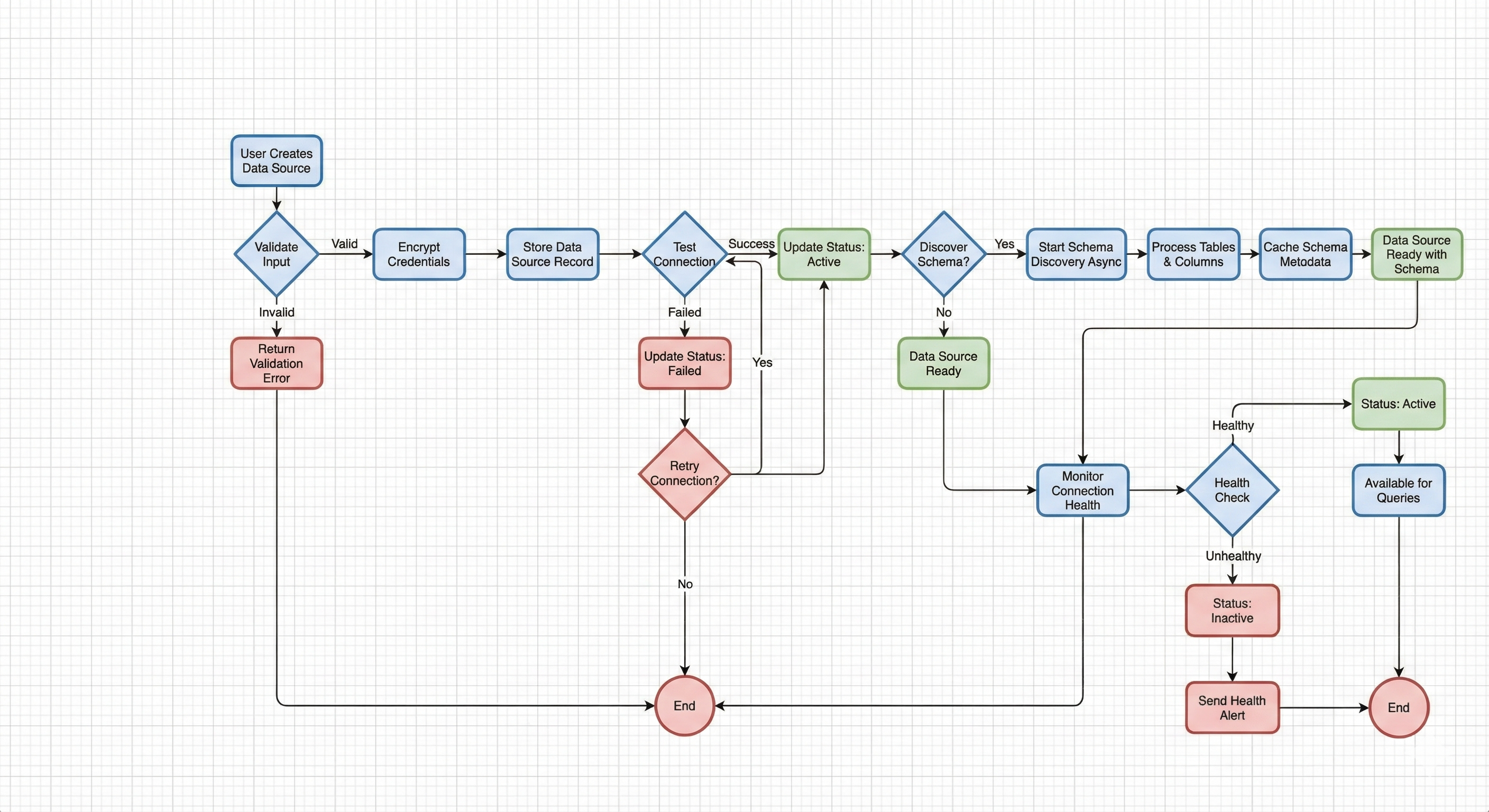

Data Sources Flow Diagram​

View Flow Diagram

Data Sources Flow Diagram

Data Sources Flow Overview:

This flow diagram illustrates the complete data source lifecycle from creation through health monitoring. It demonstrates how data sources are validated, encrypted, tested, and monitored to ensure reliable data access.

Key Flow Components:

  1. Data Source Creation: User provides connection details which are validated and encrypted before storage
  2. Connection Testing: System automatically tests connectivity to verify credentials and network access
  3. Schema Discovery: Optional async process that catalogs database structure (tables, columns, relationships)
  4. Health Monitoring: Continuous monitoring of connection status, response times, and availability
  5. Status Management: Data sources transition through states (testing, active, inactive, failed) based on connection health
  6. Error Handling: Failed connections can be retried, with status updates and alerts for administrators

Internal Developer Notes:

  • Credentials are encrypted at rest using organization-specific encryption keys
  • Connection testing and schema discovery run in thread pool executors to prevent blocking the event loop
  • Schema discovery is an async operation that may take time for large databases
  • Health checks run periodically and update connection status automatically
  • Connection metrics include pool utilization, circuit breaker states, and cache statistics

Base Path​

All data source endpoints are prefixed with /api/v1/data-sources

Authentication​

All endpoints require authentication:

Authorization: Bearer <access_token>

Data Source Types​

The API supports the following data source types:

SQL Databases​

  • PostgreSQL
  • MySQL
  • MariaDB
  • SQL Server
  • Oracle
  • Snowflake
  • BigQuery
  • Redshift

NoSQL Databases​

  • MongoDB
  • Elasticsearch
  • Redis
  • Cassandra
  • DynamoDB

File-Based Sources​

  • CSV
  • Excel
  • JSON
  • Parquet
  • ORC
  • Delta Lake
  • Iceberg
  • Hudi
  • S3

Other​

  • HTTP API
  • Other (custom)

Connection Management​

Connection Pooling​

  • Configurable pool size (default: 5)
  • Connection timeout (default: 30 seconds)
  • Query timeout (default: 300 seconds)
  • Max retries (default: 3)

SSH Tunnels​

  • Support for SSH tunnel connections
  • Configurable SSH host, port, and credentials
  • Automatic local port assignment

Connection Health​

  • Automatic health monitoring
  • Connection status tracking (active, inactive, testing, failed, maintenance)
  • Health history with response time metrics
  • Uptime percentage calculation

Schema Discovery​

  • Automatic schema discovery for databases
  • Configurable auto-refresh interval (default: 3600 seconds)
  • Manual schema refresh support
  • Schema caching for performance
  • Support for multiple schemas per data source
  • Column-level metadata (types, constraints, comments)

Note: Schema discovery is an async operation that runs in a thread pool executor to prevent blocking the event loop. Large databases may take time to discover.

Endpoints​

MethodEndpointDescription
GET/List data sources with pagination and filtering
GET/{data_source_id}Get data source details by ID
POST/Create a new data source
PATCH/{data_source_id}Update data source configuration
PATCH/{data_source_id}/credentialsUpdate data source credentials
GET/{data_source_id}/file-urlGet presigned URL for file-based data source
POST/{data_source_id}/testTest data source connection
POST/{data_source_id}/discover-schemaDiscover and cache database schema (async)
GET/{data_source_id}/schemasGet discovered schema information
GET/{data_source_id}/healthGet connection health status and history
GET/metricsGet connection metrics for monitoring
DELETE/{data_source_id}Delete data source (soft delete by default)

Internal Notes​

  • All endpoints are fully implemented
  • Connection testing and schema discovery run in thread pool executor (non-blocking)
  • Supports file-based data sources via file_path parameter (use storage API to get file paths)
  • storage_file_id parameter is deprecated - use file_path instead
  • Connection metrics include cache statistics, connection counts, pool utilization, and circuit breaker states
  • Soft delete by default (use force=true for hard delete)
  • Organization-scoped: users can only access data sources in their organization
  • Credentials are encrypted at rest

Swagger Documentation​

Interactive API documentation available at: /docs#/data-sources
