Sessions API

Individual API

The Sessions API manages user session lifecycle and monitoring.

Quick Navigation

• Overview
• Base Path
• Authentication
• Sessions Flow
• Endpoints
• Internal Notes
• Swagger Documentation

Overview

This module provides session management capabilities:

• List active sessions
• Revoke individual sessions
• Session monitoring

Base Path

All session endpoints are prefixed with /api/v1/sessions

Authentication

All endpoints require authentication:

Authorization: Bearer <access_token>

Sessions Flow

The Sessions API provides comprehensive session management and monitoring capabilities. Users can view all their active sessions across different devices and locations, and revoke sessions individually for security purposes.

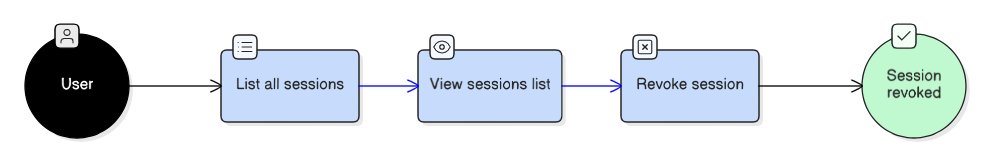

Sessions Flow Diagram

View Flow Diagram

Sessions Flow Overview:

This flow diagram illustrates the session management workflow. It shows how users can view their active sessions, monitor session activity, and revoke sessions for security purposes.

Key Flow Components:

1. Session Listing: Users can view all active sessions across different devices and locations
2. Session Metadata: Each session includes IP address, user agent, device information, and timestamps
3. Session Revocation: Users can revoke individual sessions to terminate access from specific devices
4. Security Monitoring: Session activity is tracked for security auditing and anomaly detection

Internal Developer Notes:

• Sessions are automatically created on successful login
• Session metadata is stored in the database for audit purposes
• Revoked sessions are immediately invalidated
• Session expiration follows token expiration settings

Endpoints

Method	Endpoint	Description
GET	/	List all active sessions
DELETE	/{session_id}	Revoke a specific session

Internal Notes

• All endpoints are fully implemented
• Sessions are automatically tracked on login
• Session metadata includes IP, user agent, and timestamps

Swagger Documentation

Interactive API documentation available at: /docs#/sessions
