This document provides the exhaustive technical specification for the Prompt Studio Agent (PSA) pipeline, including the iterative agentic loop, multi-intent decomposition, and the dual-layer confirmation safety system.

Agent vs AI Service Distinction

RiverGen separates intelligence into two layers to ensure consistency and reusability across the ecosystem.

Layer	Purpose	Characteristics
Domain Agents	Orchestrate complex, multi-step reasoning	Stateful within a workflow, use tools dynamically
AI Services	Provide intelligence capabilities	Stateless, reusable, callable by agents or backend directly

Key Architectural Rules

• Stable Core: Keep the number of parent agents small and stable (currently 5).
• Infinite Internals: Allow unlimited sub-agents internally as complexity grows.
• Direct Access: Not every workflow must go through an agent -- simple flows can call AI Services directly.
• Statelessness: AI Services must be reusable, stateless, and callable independently.

Parent (Domain) Agent Hierarchy

The RiverGen ecosystem is organized into five primary domain agents.

1. PSA -- Prompt Studio Agent

Complete dynamic orchestrator for all platform operations -- queries, CRUD, governance, write-back, discovery, administration, and more.

PSA is implemented as a dynamic LLM agent with tool-calling using an agentic loop (Reason -> Act -> Observe -> Reason -> ...). It can perform any action the user can do via the UI using natural language.

PSA has two categories of tools: AI Reasoning tools for thinking and planning, and Execution tools for acting on downstream services. Each execution tool call goes through the TLO Gateway, which validates the user's ACL before routing to the appropriate service (Backend, Data Orchestration, Storage, etc.). PSA never calls any service directly.

2. MSA -- Model Studio Agent

Manages ML model training, evaluation, deployment, and monitoring.

Sub-Agent	Description	Status
Training Data Planner	Select and prepare training datasets	[PLANNED]
Feature Engineering Agent	Feature selection, transformation, and creation	[PLANNED]
Compute Selector	Choose appropriate compute resources (CPU/GPU)	[PLANNED]
Evaluation Agent	Model performance evaluation and comparison	[PLANNED]
Deployment Agent	Model serving and versioning	[PLANNED]

3. DIA -- Decision Intelligence Agent

Decision workflow building, simulation, and automated action execution.

Sub-Agent	Description	Status
Workflow Builder	Build decision graphs with conditional steps	[PLANNED]
Threshold Optimizer	Optimize decision thresholds and rules	[PLANNED]
Simulation Agent	What-if analysis and backtesting	[PLANNED]
Impact Estimator	ROI, cost, and risk estimation	[PLANNED]
Action Router	Route approved decisions to target systems	[PLANNED]

4. GA -- Governance Agent

Policy management, compliance enforcement, and audit.

Sub-Agent	Description	Status
Policy Compiler	Convert policy definitions into enforceable constraints	[PARTIAL]
Masking/RLS Injector	Inject masking and RLS into execution plans	[IMPLEMENTED]
Risk Scorer	Score data access risk level	[PLANNED]
Approval Gate	Human-in-the-loop approval workflows	[PLANNED]
Audit/Lineage Agent	Track full lineage from prompt to write-back	[PLANNED]

5. OSA -- Operational Service Agent

Connector execution, operational workflows, and system reliability.

Sub-Agent	Description	Status
Connector Execution Agent	Execute queries/API calls via connectors	[PARTIAL]
Retry & Idempotency Agent	Handle retries with idempotency guarantees	[PLANNED]
Notification Agent	Send alerts and notifications	[PLANNED]
Runbook Executor	Execute automated operational runbooks	[PLANNED]

PSA Agentic Loop

The PSA agent uses an agentic tool-calling loop (Reason -> Act -> Observe -> Reason -> ...). Unlike a static plan-then-execute model, PSA reasons and acts iteratively -- calling tools, reading responses, and adapting its plan mid-turn.

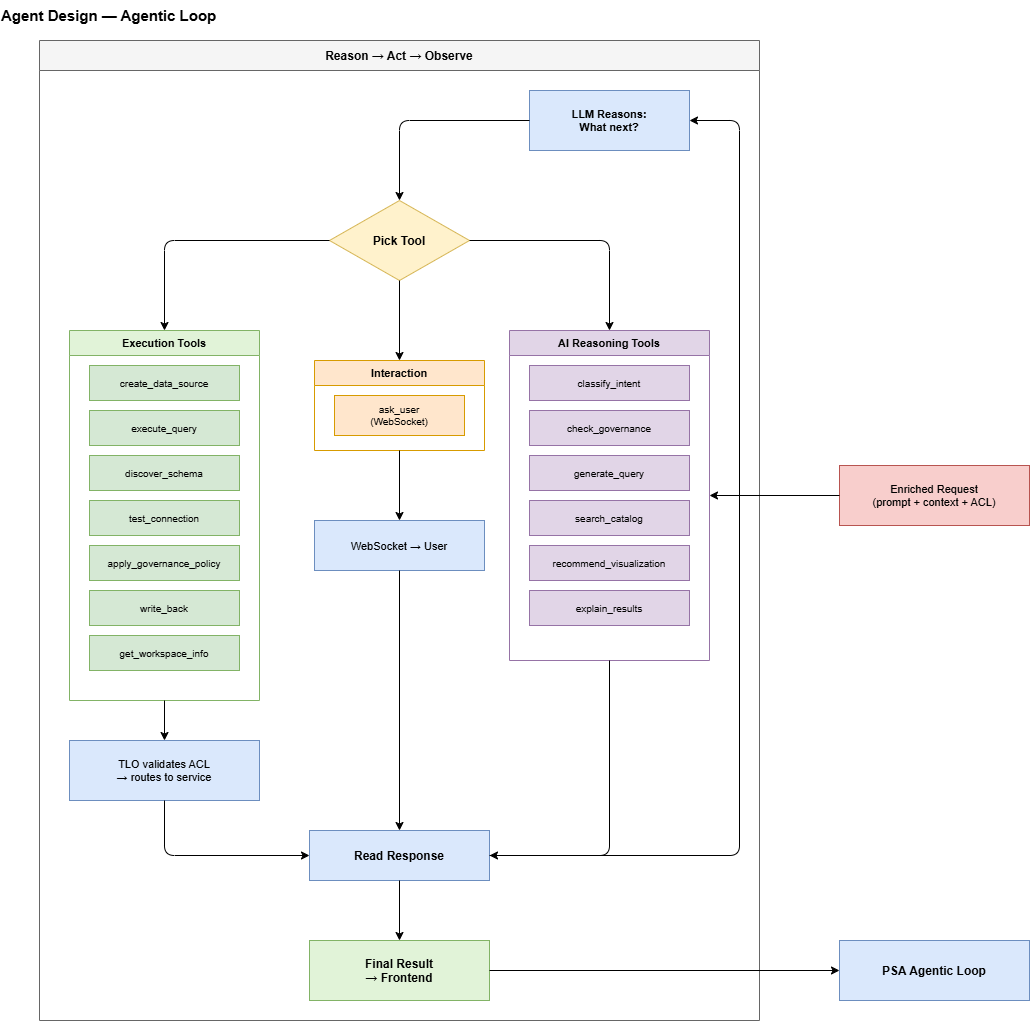

The Reasoning Cycle

Key Behaviors

• Iterative: PSA calls one tool at a time, reads the response, and decides the next step.
• Adaptive: Each step can adapt based on previous results (e.g., schema discovery revealing table names filters the next query).
• Per-call ACL: Each execution tool call goes through TLO for ACL validation -- not a single upfront check.
• Non-Linear: Tools can be called in any order based on real-time reasoning.
• Interactive: ask_user can be called at any point for clarification, confirmation, or credential input.
• Resilient: Error recovery triggers specific patterns -- retry, escalate model, or ask user.

PSA Tool Registry

PSA operates through three distinct tool categories. All execution tools are strictly routed through the TLO Gateway for security enforcement.

1. AI Reasoning Tools

These tools are used by the agent to think, plan, and evaluate its own logic.

Tool	AI Service	Purpose	Status
classify_intent	RiverPlan	Classify NL prompt into structured intent + action type	[PLANNED]
check_governance	RiverGuard	Evaluate RBAC, RLS, masking, and action-level permissions	[PLANNED]
generate_query	RiverPlan	Generate optimized SQL/NoSQL queries with governance applied	[PLANNED]
search_catalog	RiverSemantic	Find relevant schema assets via vector similarity	[PLANNED]
recommend_visualization	RiverViz	Suggest charts and display formats for query results	[PLANNED]
explain_results	RiverPlan	Score confidence and provide reasoning for outcomes	[PLANNED]

2. Execution Tools (Validated by TLO)

These tools perform actual operations on downstream platform services.

Tool	Backend API	Purpose	Status
create_data_source	POST /data-sources	Register a new database connection	[PLANNED]
update_data_source	PATCH /data-sources/:id	Update connection settings	[PLANNED]
delete_data_source	DELETE /data-sources/:id	Permanently remove a data source	[PLANNED]
test_connection	POST /data-sources/test	Validate host/credential connectivity	[PLANNED]
discover_schema	POST /data-sources/discover	Introspect tables, columns, and metadata	[PLANNED]
execute_query	Data Orch	Run generated SELECT or DML commands	[PLANNED]
apply_governance_policy	POST /policies	Create or update RBAC/RLS access rules	[PLANNED]
write_back	Data Orch	Atomic record insertion/update to target system	[PLANNED]
get_workspace_info	GET /workspaces/:id	Retrieve workspace-level settings and members	[PLANNED]
get_storage_info	GET /storage/usage	Retrieve storage utilization metrics	[PLANNED]

3. Interaction Tools

Used for bidirectional communication with the end-user.

Tool	Channel	Purpose	Status
ask_user	WebSocket	Request clarification, credentials, or explicit approval	[PLANNED]

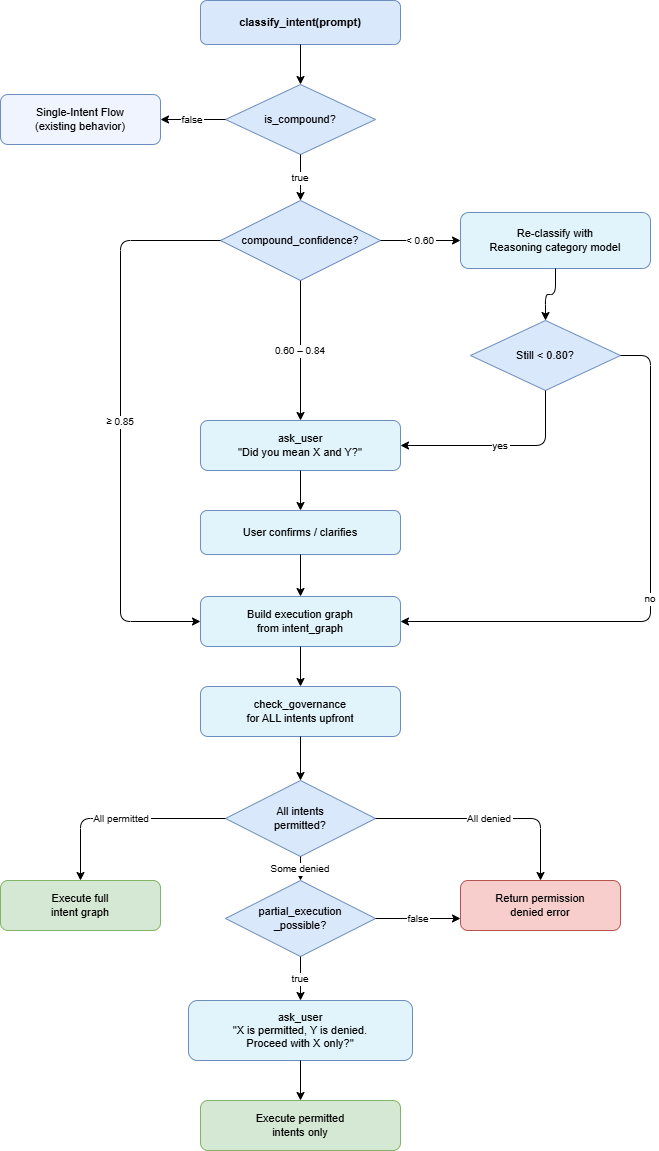

Multi-Intent Decomposition

When PSA detects multiple distinct intents in a single user prompt (e.g., "Query data AND write results to a new table"), it decomposes them into an ordered execution graph.

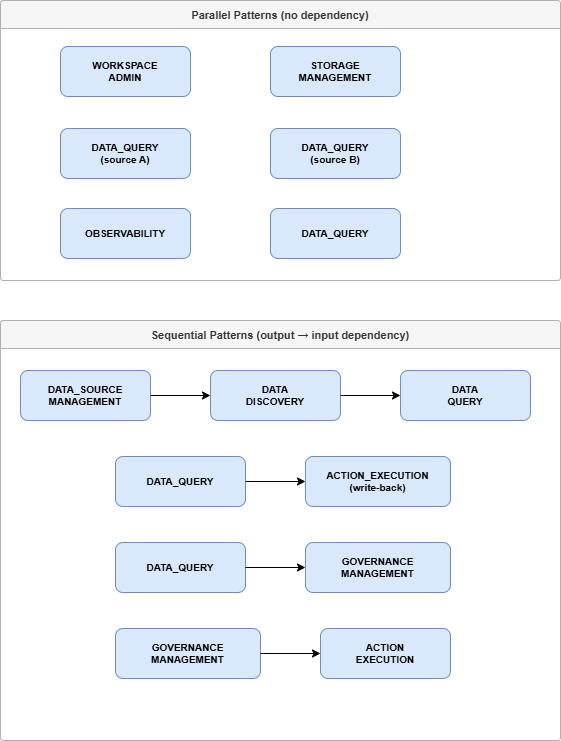

Execution Order Rules

Order Type	Scenario	Example Case
Sequential	Step B depends on Step A output	"Query data AND write back results"
Parallel	Steps are independent	"Show storage usage AND list workspace members"
Conditional	Step B depends on Step A logic	"Find overdue invoices; if any exist, alert user"

Multi-Intent Governance

• Upfront Validation: PSA performs a single check_governance call for all intents at the start.
• Partial Execution: If some intents are permitted and others denied, PSA uses ask_user to provide the choice to proceed with the permitted subset only.
• Single Context: All decomposed intents share the same execution context and metadata for consistency.

Dependency Matrix

Primary Intent	Secondary Intent	Order Type	Data Dependency
Data Source Mgmt	Data Discovery	Sequential	Discovery needs the source ID
Data Discovery	Data Query	Sequential	Query needs the discovered schema
Data Query	Write-Back	Sequential	Write needs query result data
Workspace Admin	Storage Mgmt	Parallel	Independent platform lookups

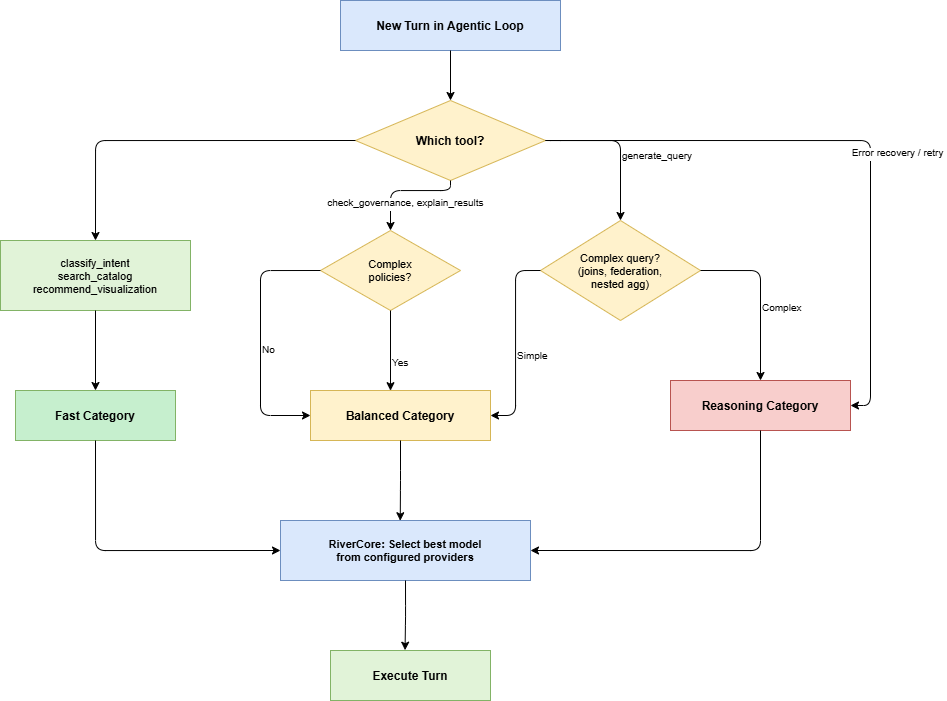

Multi-LLM Routing (Per-Turn)

PSA optimizes for cost, latency, and quality by dynamically routing each turn to the most appropriate AI model. This selection is handled by RiverCore, which abstracts specific providers (Gemini, OpenAI, Claude, DeepSeek) into general capability categories.

Model Categories

Category	Typical Models	Strengths	Avg Latency	Relative Cost
Fast	GPT-4o-mini, Gemini Flash Lite	Classification, pattern matching, simple lookups	~200ms	1x
Balanced	GPT-4o, Claude Sonnet, Gemini Flash	Standard query generation, structured reasoning	~500ms	3x
Reasoning	o3, Gemini Pro, Claude Opus	Multi-join SQL, federation, ambiguity resolution	~2s	10x
Coding	GPT-4o, Claude Sonnet, DeepSeek-V3	SQL/NoSQL generation, dialect optimization	~800ms	4x

Escalation and Fallback Rules

• Low Confidence: If classify_intent returns confidence <0.7, the turn escalates to the Balanced category.
• Complex Operations: Multi-source federation, 3+ table joins, or nested subqueries trigger escalation to the Reasoning category.
• Error Recovery: Any tool call that returns a recoverable error (e.g., syntax error) escalates to the next higher category for the retry.
• Provider Fallback: If the primary provider for a category is unavailable (503/Rate Limit), RiverCore cycles through the fallback chain (e.g., Gemini -> OpenAI -> Anthropic).

Cost and Performance Metrics

The pipeline is optimized for token efficiency and operational transparency.

• Latency Optimization: Reasoning models are only used for 20% of turns (complex query gen and error recovery).
• Token Caching: System instructions are cached via LLM provider-native context caching to reduce per-turn costs.
• Turn Enforcement: Execution is terminated if the agent exceeds 15 turns without reaching a completion state.
• Spatial Limits: Query result previews are capped at 1000 rows to maintain frontend responsiveness.

Dual-Layer Confirmation System

Destructive operations (UPDATE, DELETE, INSERT, policy changes) strictly require user confirmation. RiverGen enforces this via two independent layers to prevent accidental or unauthorized execution if PSA's logic fails.

Confirmation Layers

Layer	Initiator	Trigger Condition	Primary Purpose
Layer 1	PSA Agent	identified via LLM reasoning during the loop	Proactive -- providing the best conversational flow
Layer 2	TLO Gateway	restricted API called without a confirmation_token	Safety net -- catches reasoning errors or logic bypasses

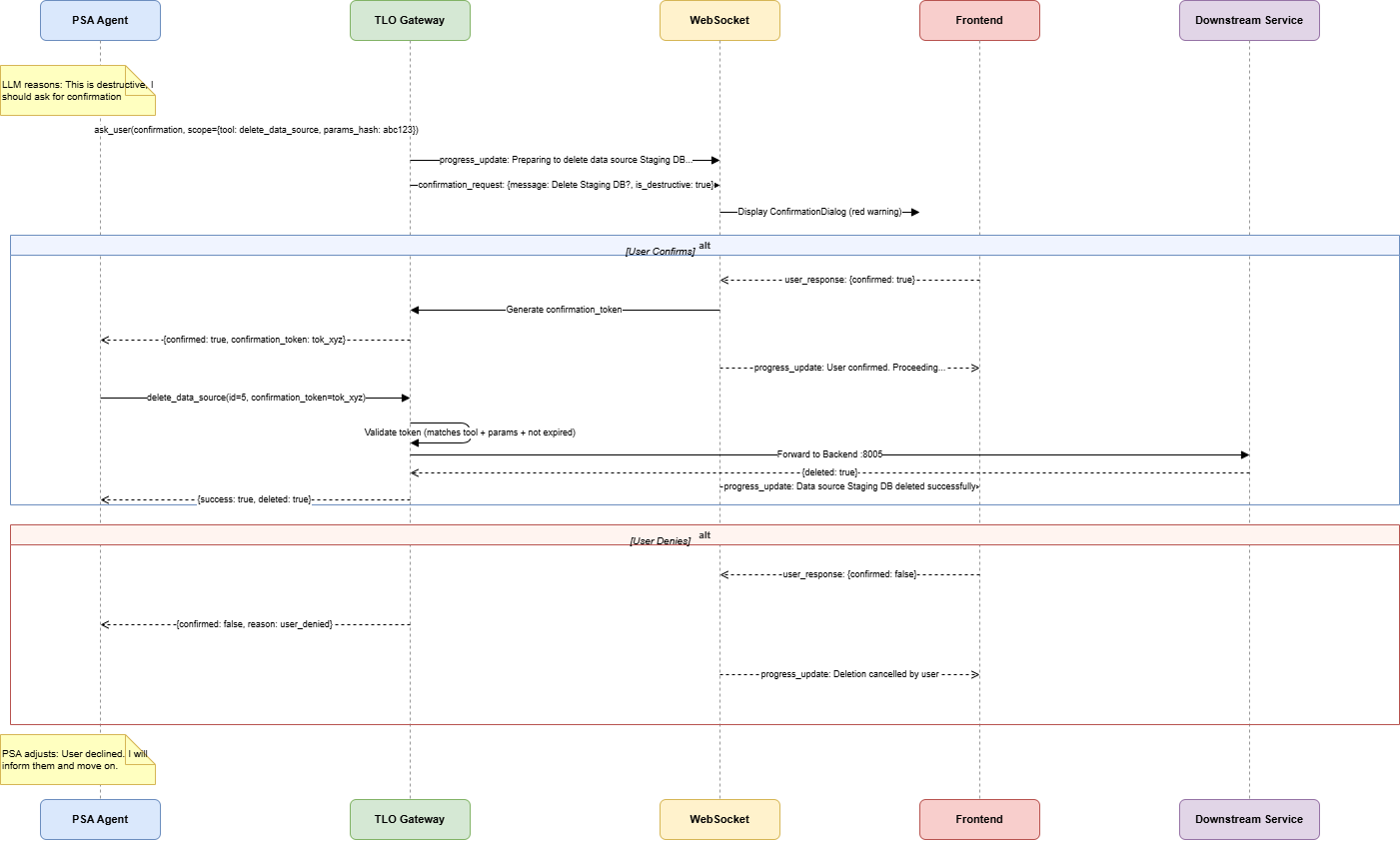

1. PSA-Initiated (Proactive)

PSA identifies a destructive requirement through classify_intent (needs_confirmation: true) or system instructions. It proactive calls ask_user before the execution tool call.

2. Backend-Enforced (Safety Net)

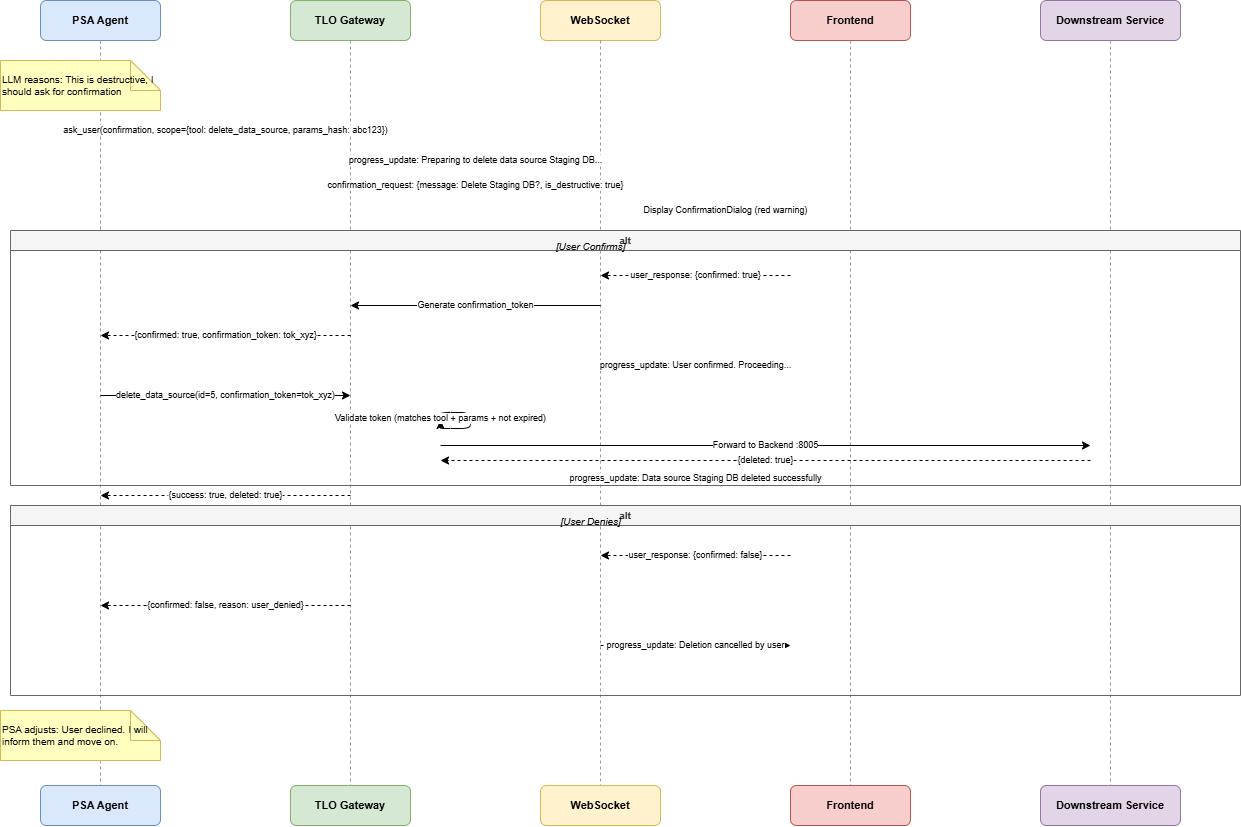

If PSA calls a restricted tool without a token, the TLO Gateway intercepts the request, pauses execution, and triggers a backend-enforced confirmation dialog via WebSocket.

API Confirmation Registry

The TLO Gateway maintains a strict registry of operations that trigger the Layer 2 safety net.

Execution Tool	Requires Confirmation	Reason for Requirement
create_data_source	No	Non-destructive resource creation
update_data_source	Yes	Modifies existing production resources
delete_data_source	Yes	Destructive -- permanently removes assets
discover_schema	No	Read-only metadata introspection
execute_query (SELECT)	No	Read-only data retrieval
execute_query (DML)	Yes	Modifies data in source database (UPDATE/DELETE)
apply_governance_policy	Yes	Changes access rules for all workspace users
write_back	Yes	Destructive modification of source systems

Confirmation Token Structure

The confirmation_token is a single-use proof of user approval scoped to a specific tool call.

{
    "token_id": "ctok_a1b2c3d4",
    "execution_id": "exec-xyz789",
    "tool_name": "delete_data_source",
    "parameters_hash": "sha256:9f86d0...",
    "user_id": 42,
    "confirmed_at": "2025-01-15T10:09:55Z",
    "expires_at": "2025-01-15T10:14:55Z",
    "scope": "single_use"
}

Edge Cases and Error Recovery

PSA operates in a dynamic multi-step environment. Its resilience is built on a specific error taxonomy and predefined recovery patterns.

Error Taxonomy

Error Type	Source	Example Scenario	Severity	Retriable
permission_denied	TLO Gateway	User lacks data_source:delete	Blocking	No
tool_timeout	Execution tool	Query execution exceeds 120s	Recoverable	Yes (3x)
service_unavailable	Backend	Port :8005 is unreachable	Recoverable	Yes (3x + Backoff)
invalid_query	generate_query	Syntax error in produced SQL	Recoverable	Yes (Escalate model)
connection_failed	test_connection	Target database host is down	Non-retriable	No (Ask User)
governance_conflict	check_governance	RLS rules contradict masking policy	Escalatable	Yes (Reasoning model)
user_cancellation	ask_user	User declines a required confirmation	Terminal	No
turn_limit_hit	Agentic loop	Agent exceeds 15 reasoning turns	Terminal	No

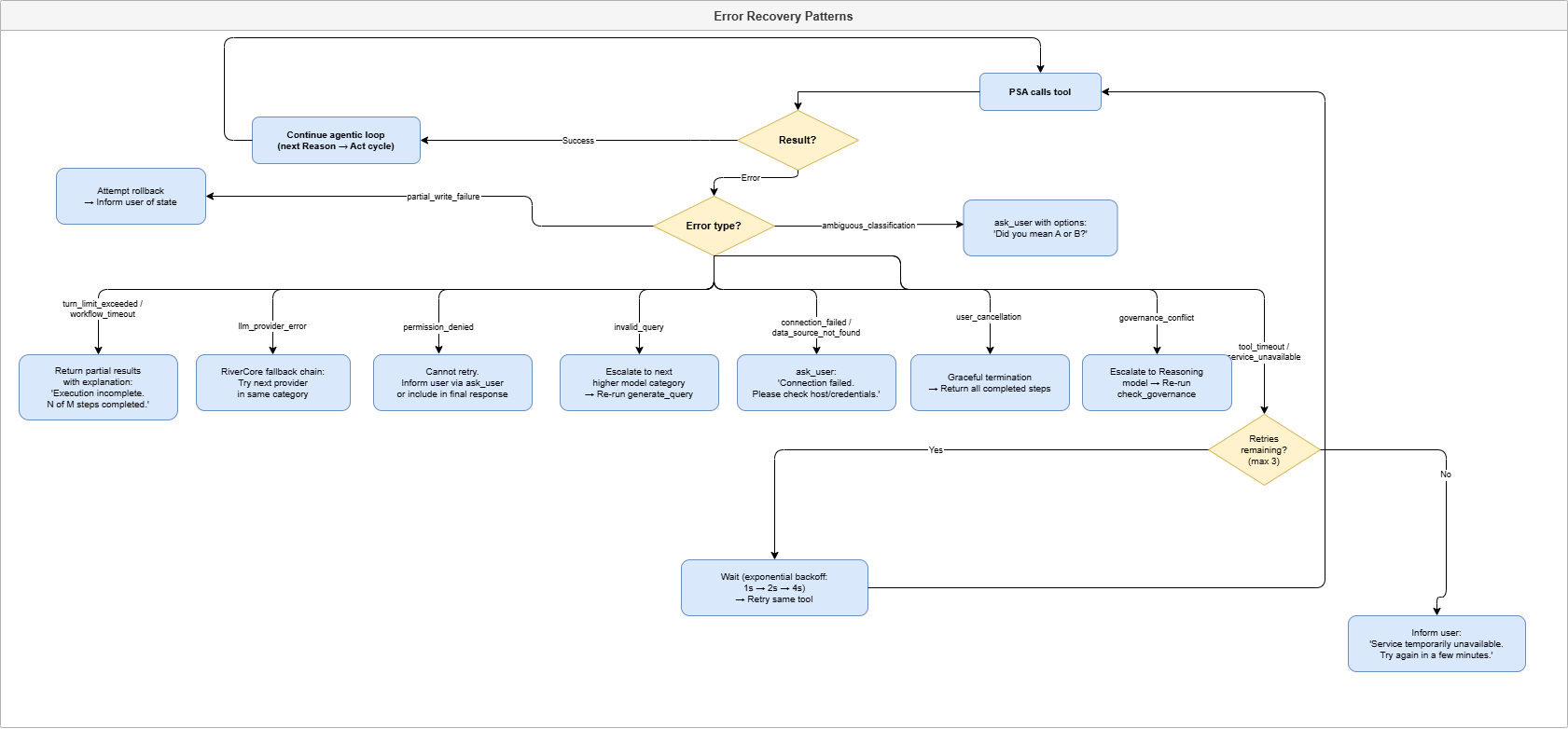

Recovery Patterns

1. Retry Pattern: For tool_timeout or service_unavailable, PSA retries up to 3 times with exponential backoff (1s -> 2s -> 4s).
2. Escalation Pattern: For invalid_query or governance_conflict, PSA escalates the turn to the Reasoning category to analyze and re-evaluate the plan.
3. Interaction Pattern: For connection_failed or ambiguous_classification, PSA calls ask_user to gather manual clarification or valid credentials.
4. Graceful Termination: For permission_denied or user_cancellation, PSA returns all completed step data with a final report explaining why subsequent steps were skipped.

PSA Tool Specifications

All PSA tools utilize strict Pydantic JSON schemas. If a tool response fails validation, PSA triggers a retry turn with an escalated model.

Tool: classify_intent (RiverPlan)

Classifies the natural language prompt into a structured intent and action type.

{
    "intent_type": "DATA_QUERY",
    "intent_summary": "Aggregation of customer revenue",
    "is_compound": true,
    "secondary_intents": ["GOVERNANCE_MANAGEMENT"],
    "intent_graph": {
        "execution_order": "sequential",
        "steps": [
            {"step_id": 1, "intent": "DATA_QUERY", "depends_on": []},
            {"step_id": 2, "intent": "GOVERNANCE", "depends_on": [1]}
        ]
    },
    "compound_confidence": 0.93,
    "ambiguity_flag": false
}

Tool: check_governance (RiverGuard)

Evaluates permissions and generates RLS filters and masking rules.

{
    "action_permitted": true,
    "row_filters": ["customers.region = 'West'"],
    "column_masking_rules": [
        {
            "column": "customers.ssn",
            "condition": "always",
            "masking_function": "partial_mask(last_4)",
            "description": "Show last 4 digits only"
        }
    ],
    "requires_approval": true,
    "partial_execution_possible": true
}

Tool: generate_query (RiverPlan)

Constructs dialect-optimized SQL/NoSQL with governance applied.

{
    "data_source_id": 1,
    "compute_engine": "PostgreSQL",
    "query": "SELECT id, name FROM customers WHERE region = 'West'",
    "query_type": "select",
    "strategy": "pushdown",
    "explanation": "Standard query with regional RLS filter applied."
}

Concrete Integration Examples

The following scenarios demonstrate PSA's agentic reasoning across single and compound intents.

Example 1: Simple Data Query (3 Turns)

• User: "Show top 10 customers by revenue"
• Turn 1: classify_intent -> DATA_QUERY, needs aggregation + join.
• Turn 2: check_governance -> RLS: region='West', masking: SSN partial.
• Turn 3: generate_query -> SQL with governance filters applied.
• Outcome: Return query + Table/Bar chart visualization to frontend.

Example 2: Data Source Discovery (6 Turns)

• User: "Connect to my PostgreSQL at billing-db.company.com and discover the schema"
• Turn 1: classify_intent -> DATA_SOURCE_MGMT + DATA_DISCOVERY.
• Turn 2: ask_user -> "Please provide the database password."
• Turn 3: create_data_source -> TLO Validates -> Backend :8005 -> ID=15.
• Turn 4: test_connection(ID=15) -> [SUCCESS].
• Turn 5: discover_schema(ID=15) -> 25 tables found.
• Outcome: Returns full schema tree to UI.

Example 3: Compound Query + Write-Back (8 Turns)

• User: "Find customers with churn > 0.8 and write IDs to retention_list"
• Logic: Sequential Execution (Write depends on Query results).
• Turn 1: classify_intent -> Compound (DATA_QUERY + ACTION_EXECUTION).
• Turn 4: execute_query -> Returns 142 rows.
• Turn 6: ask_user (confirmation) -> "This will update 142 rows. Proceed?"
• Turn 7: write_back -> TLO Validates token -> Data Orch :8002.
• Outcome: Confirm 142 rows inserted into target table.

Example 4: Governance Action (4 Turns)

• User: "Apply column masking to SSN in customers table"
• Turn 1: classify_intent -> GOVERNANCE_MGMT.
• Turn 3: ask_user (confirmation) -> "Apply partial masking to SSN for all users?"
• Turn 4: apply_governance_policy -> Policy created in Backend.
• Outcome: Column SSN now masked in all subsequent queries.

Example 5: Partial Permission Denial (5 Turns)

• User: "Query data and create an RLS policy for region='East'"
• Logic: Analyst role has Query but NOT Policy:Create.
• Turn 2: check_governance -> DATA_QUERY [OK], GOVERNANCE [DENIED].
• Turn 3: ask_user -> "You lack policy permissions. Proceed with query only?"
• Turn 4: User confirms -> PSA executes Query only.
• Outcome: Results returned; Governance step marked [SKIPPED].

Example 6: Parallel Platform Lookups (4 Turns)

• User: "Show workspace members and storage usage"
• Logic: Parallel Execution (No data dependency).
• Turn 3: PSA calls get_workspace_info and get_storage_info concurrently.
• Outcome: UI renders Member list and Storage chart.

Example 7: Complex Multi-Intent Federation (10 Turns)

• User: "Join Salesforce contacts with PG orders and explain the growth"
• Logic: Sequential (Discovery) -> Parallel (Reads) -> Sequential (Join + Explainer).
• Outcome: Multi-source JOIN executed via hybrid strategy; narrative report generated.

Example 8: Backend-Enforced Safety Net (6 Turns)

• User: "Delete the staging database connection"
• Logic: PSA skips ask_user reasoning error.
• Turn 3: PSA calls delete_data_source -> TLO catches no-token call.
• Turn 4: TLO triggers mandatory confirmation popup via WebSocket.
• Outcome: Backend deletes only AFTER TLO receives the user's manual approval.

Example 9: Error Recovery - Model Escalation (4 Turns)

• User: "Complex query with nested window functions"
• Turn 1: generate_query (Balanced) -> SQL Syntax Error.
• Turn 2: PSA analyzes error -> Escalates to Reasoning category (o3/Opus).
• Turn 3: generate_query (Reasoning) -> Generates valid complex SQL.

Example 10: Multi-Step Credential Gathering (7 Turns)

• User: "Setup Snowflake and run discovery"
• Turn 2: ask_user -> Requests Host/Account.
• Turn 4: ask_user -> Requests Token/Password.
• Outcome: Connection stored and schema discovered.

Sample Response Payloads

Compound Success (Query + Write)

{
    "status": "success",
    "is_compound": true,
    "intent_summary": "Find high-churn customers and write to retention list",
    "compound_results": [
        {
            "step": 1,
            "intent": "DATA_QUERY",
            "status": "success",
            "query_result": { "rows_returned": 142, "data": "[...]" }
        },
        {
            "step": 2,
            "intent": "ACTION_EXECUTION",
            "status": "success",
            "action_result": { "rows_affected": 142, "operation": "INSERT" }
        }
    ],
    "ai_metadata": { "turns": 8, "total_cost_usd": 0.0058 }
}

Partial Success (Permission Denied)

{
    "status": "partial_success",
    "is_compound": true,
    "compound_results": [
        { "step": 1, "intent": "DATA_QUERY", "status": "success" },
        {
            "step": 2,
            "intent": "GOVERNANCE",
            "status": "skipped",
            "error": "insufficient_permissions"
        }
    ]
}

LLM Agent Configuration

The PSA agent is configured with high-level system instructions and a dynamic provider fallback chain.

System Instructions (Summary)

• Role: You are PSA, the dynamic orchestrator for RiverGen.
• Loop: You operate in a Reason -> Act -> Observe loop.
• Security: ALWAYS check governance via check_governance before execution.
• Safety: ALWAYS confirm destructive actions via ask_user or obtain a confirmation_token.
• Transparency: Report all model turn categories and token costs in ai_metadata.

Provider Mappings

Category	Primary Provider	Fallback 1	Fallback 2
Fast	OpenAI (GPT-4o-mini)	Gemini (Flash Lite)	Anthropic (Haiku)
Balanced	Gemini (Flash)	OpenAI (GPT-4o)	Anthropic (Sonnet)
Reasoning	Anthropic (Opus)	OpenAI (o3)	Gemini (Pro)
Coding	DeepSeek (V3)	OpenAI (GPT-4o)	Anthropic (Sonnet)

Related

• System Architecture Overview
• Backend Architecture
• Frontend Integration

---

• (c) 2026 RiverGen. Confidential - For Internal Documentation and Technical Integration.*
