This page provides the comprehensive technical specification, architectural diagrams, and service interactions for the Prompt Studio (PSA) dynamic orchestrator.

Overview

Prompt Studio (PSA) is the flagship intelligence orchestrator of the RiverGen Stack. It enables users to execute complex operations--including database queries, schema administration, and governance enforcement--using natural language interfaces.

PSA operates through a continuous agentic loop (Reason -> Act -> Observe). It dynamically selects the optimal tool sequence to achieve a user's objective, rather than following a static, pre-defined execution pipeline.

The service is integrated directly with the Top-Level Orchestrator (TLO). This ensures that every tool call and data access request is validated against the user's active Access Control Lists (ACL) in real-time.

Use Cases

PSA provides the primary automation layer for technical teams who need to interact with heterogeneous data systems through specialized AI reasoning.

• Intelligent Data Research: querying cross-system datasets (SQL, NoSQL, and Object Storage) using context-aware natural language.
• Governed Administration: creating or modifying data sources and schema structures with automated policy and safety checks.
• Workflow Automation: building multi-step sequences that involve data retrieval, transformation, and automated write-back to production systems.
• Compliance Monitoring: scanning data environments for sensitive patterns and applying RLS or masking policies via natural language commands.

Inputs

The PSA service accepts structured execution requests via the TLO Gateway. The following table defines the core parameters required for successful reasoning and action.

Field	Type	Required	Description
prompt_text	string	Yes	The natural language user instruction or SPL-enhanced command.
workspace_id	uuid	Yes	The target environment identifier for context resolution.
data_source_ids	array[uuid]	No	Optional list of specific database IDs to scope the search.
user_context	object	Yes	Enriched metadata including roles, claims, and organization attributes.
options.temperature	float	No	Reasoning randomness; defaults to 0.0 for deterministic execution.

Outputs

The service yields asynchronous progress updates and a final structured result payload upon successful task completion.

Field	Type	Description	Example Value
execution_id	uuid	Unique ID for tracking the asynchronous Temporal workflow.	550e8400-e29b-41d4-a716-446655440000
intent_type	enum	The system-classified intent (e.g., DATA_QUERY, GOVERNANCE).	ACTION_EXECUTION
final_data	object	The formatted output, representing either results or status.	{"status": "success", "rows": 125}
trace_log	array	Sequence of reasoning steps and tool calls performed.	["classify", "generate_query", "execute"]
confidence	float	Probability rating of the execution plan validity.	0.995

Model Behavior

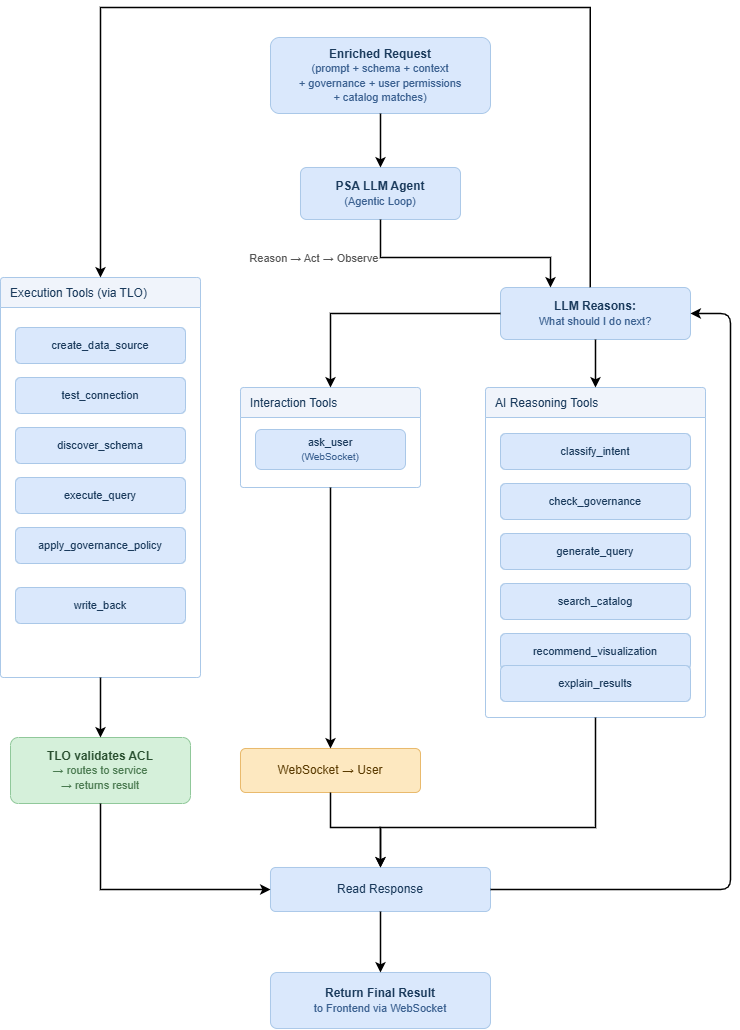

PSA utilizes an agentic loop design. This allows the orchestrator to reason iteratively, calling specialized tools and adapting to their results before concluding the task.

1. Information Enrichment: PSA fetches relevant metadata, including schemas and governance policies, to build an exhaustive reasoning context.
2. Intent Branching: The classify_intent tool maps the request to one of the nine active intent types, determining the subsequent tool inventory.
3. Iterative Reasoning: The model calls tools (e.g., search_catalog or ask_user), reads their outputs, and updates its internal state for the next step.
4. Final Delivery: Once the reasoning concludes that the objective is met, the system packages the results and transmits an "execution_complete" message.

Configuration Options

Administrators manage service behavior via the RiverCore configuration layer. These settings determine model selection strategies and safety thresholds.

Parameter	Default	Category	Description
routing_strategy	balanced	RiverCore	Determines the default provider chain (Gemini, OpenAI, etc).
model_per_turn	true	RiverPlan	If true, selects the best model category for every reasoning turn.
safety_level	strict	RiverGuard	Controls the sensitivity of the governance rejection layer.
max_loop_count	10	Orchestrator	Limits the number of agent turns to prevent infinite loops.

Integration Guide

To integrate PSA, services must communicate exclusively through the Top-Level Orchestrator (TLO) Gateway.

1. Unified Authentication

Establish a connection by providing a JWT in the Authorization header. This token must include the user's workspace and role claims for ACL validation.

curl -X POST https://api.rivergen.local/tlo/v1/prompts/execute \
  -H "Authorization: Bearer <token>" \
  -d '{"prompt_text": "List billing tables"}'

2. Bidirectional WebSocket UI

PSA often requires interactive input (e.g., for missing passwords or confirmations). Integrations must listen for the ask_user tool call on the WebSocket.

const ws = new WebSocket("ws://api.rivergen.local/ws/executions/{id}");
ws.onmessage = (event) => {
  const data = JSON.parse(event.data);
  if (data.type === "user_interaction_required") {
    handlePromptClarification(data.payload);
  }
};

3. Execution Sequencing

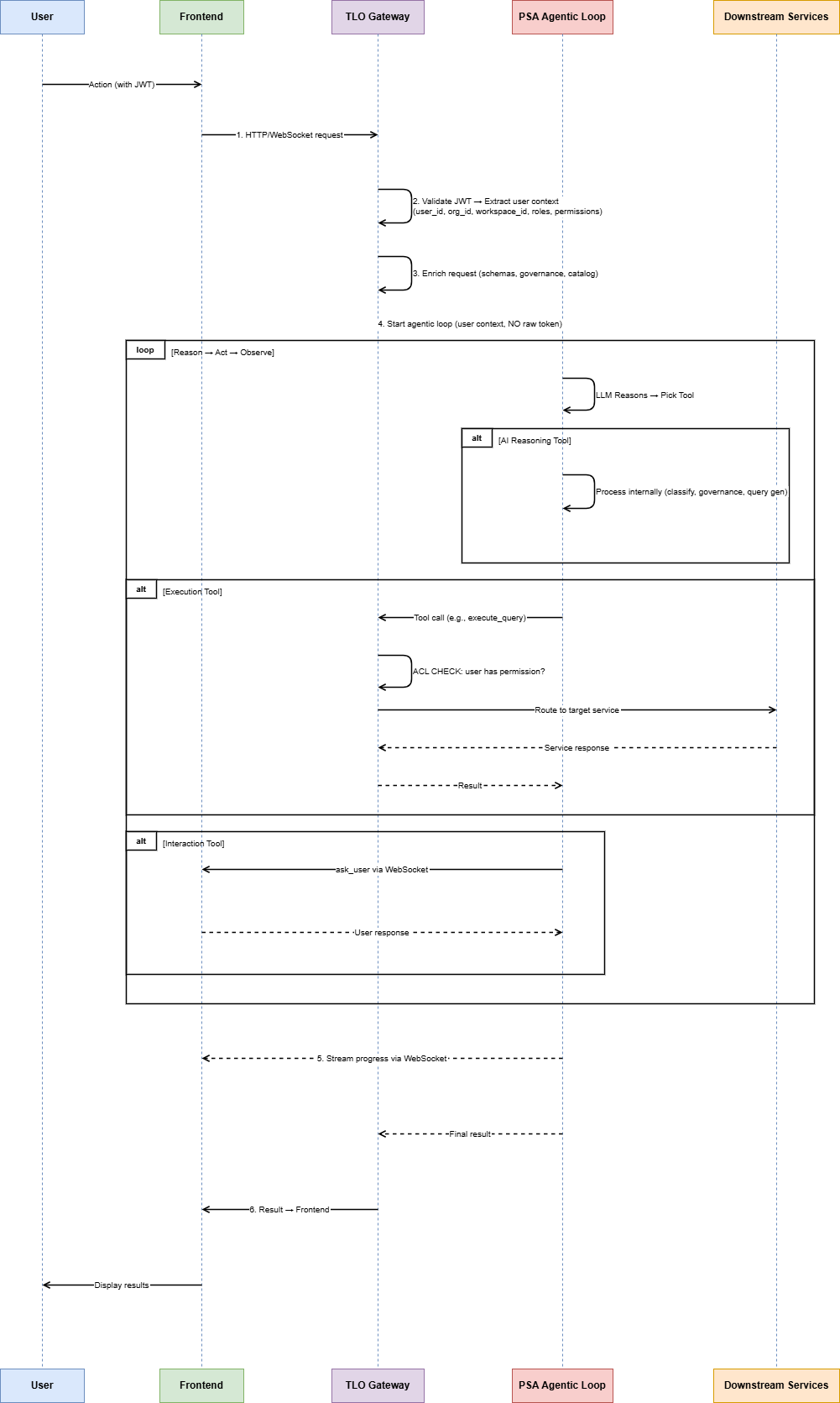

The following diagram illustrates the complete end-to-end flow from user input to result delivery.

Cost and Performance

PSA performance is determined by the number of reasoning turns and the latency of the underlying LLM provider.

• Turn Latency: Each reasoning turn typically takes 1.2 to 2.5 seconds depending on the selected model category.
• Workflow Duration: Simple queries resolve in under 5 seconds, while multi-step management tasks may take 15 to 30 seconds.
• Token Handling: Context window management is handled by RiverCore to optimize token usage and cost across provider boundaries.

Limitations and Known Issues

Implementers should account for the following constraints during system design and deployment.

• Schema Scalability: Processing schemas with more than 5,000 entities may increase classification latency significantly.
• Ambiguity Blocks: if a prompt is too vague, PSA may enter an interaction loop (ask_user) or fail if no intent is matched.
• Dependency Serialization: PSA executes steps within a loop; it cannot currently parallelize independent tool calls in a single turn.

Technical Architecture

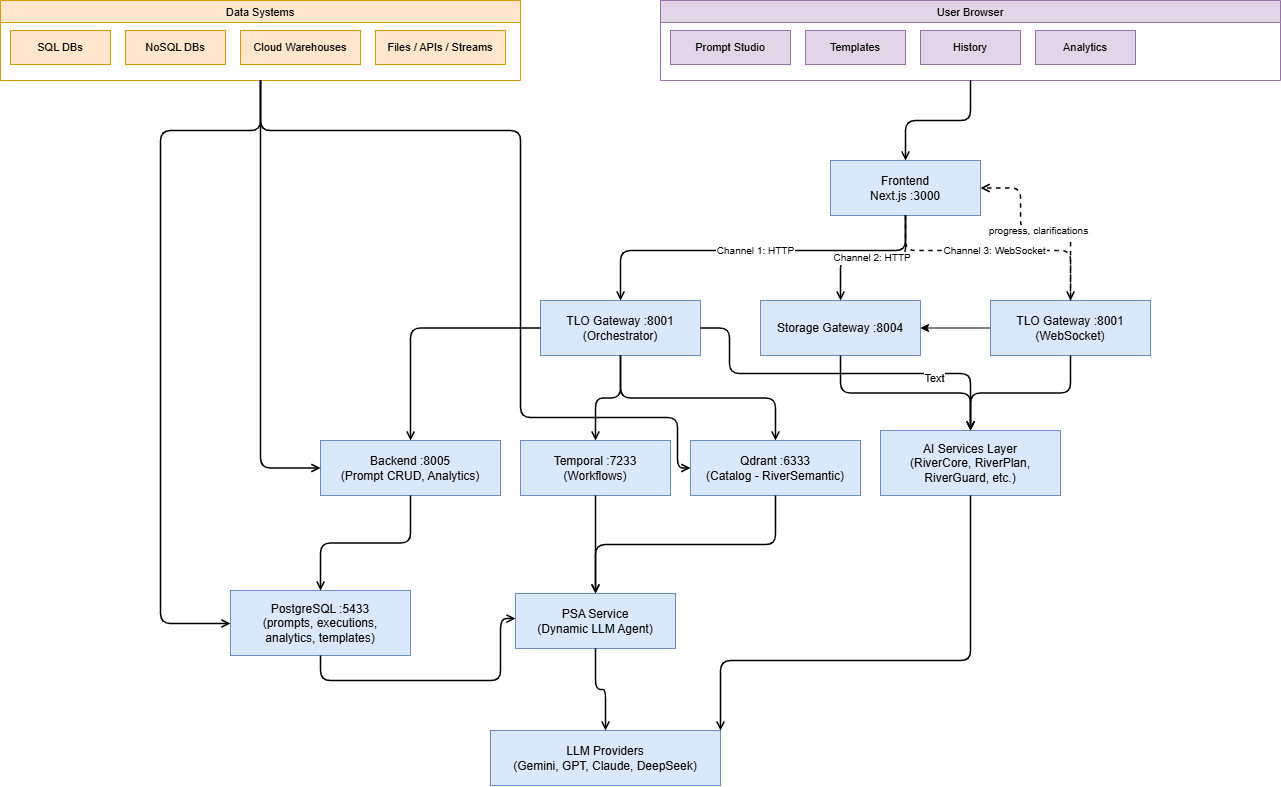

The PSA architecture is divided into clear functional layers to ensure modularity and security.

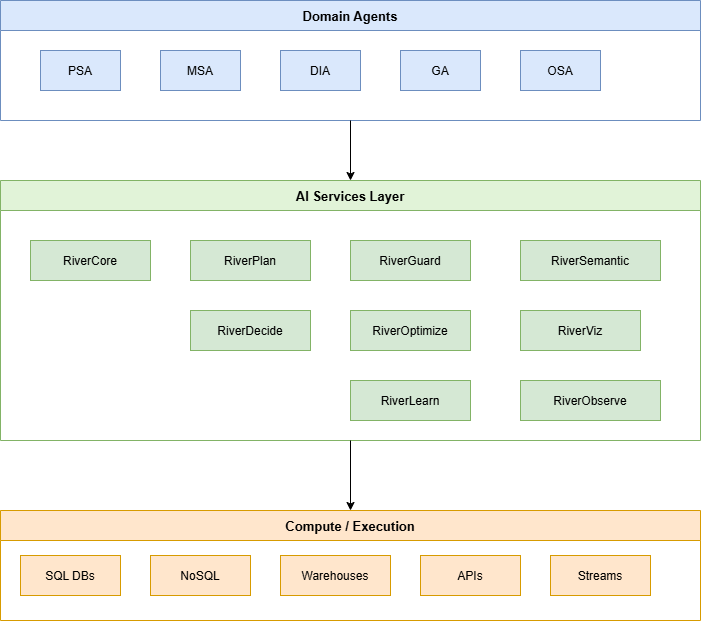

RiverGen Intelligence Stack Mapping

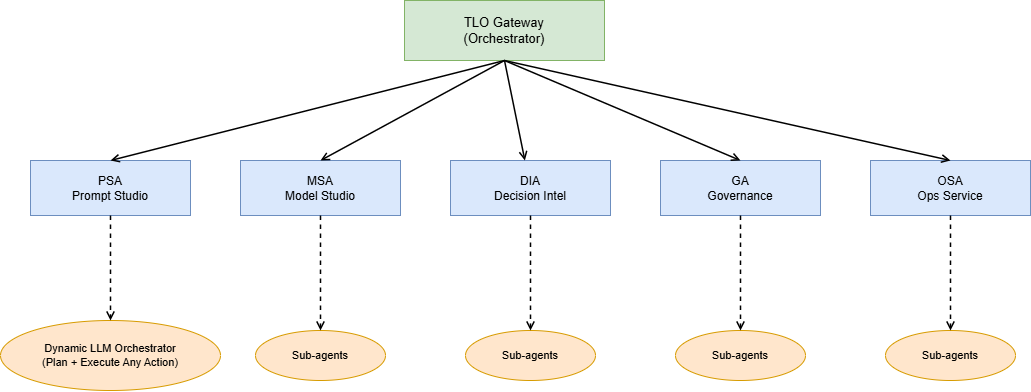

PSA coordinates with several parent agents and sub-services to provide a unified intelligence layer.

Agent	Scope	Role in PSA Flow
GA	Governance	Validates all execution tools against RBAC/RLS policies.
MSA	Model Studio	Provides trained models for specific intent types.
OSA	Operations	Manages connector connectivity and retry logic.
